Overview

Scan Me is a Frappe utility app that turns any allowlisted document into a verifiable, signable, printable artifact. It combines QR-backed document verification, a Chromium-powered PDF pipeline with
live preview, PAdES cryptographic signatures, and a developer-friendly toolkit of Jinja helpers and JavaScript utilities — all driven by a tabbed settings form, with zero boilerplate.

Whether you need a one-line QR helper inside a print format or a full audit-grade signing workflow with tamper detection, Scan Me ships both — out of the box.

✨ Purpose

Scan Me is built to solve the following needs:

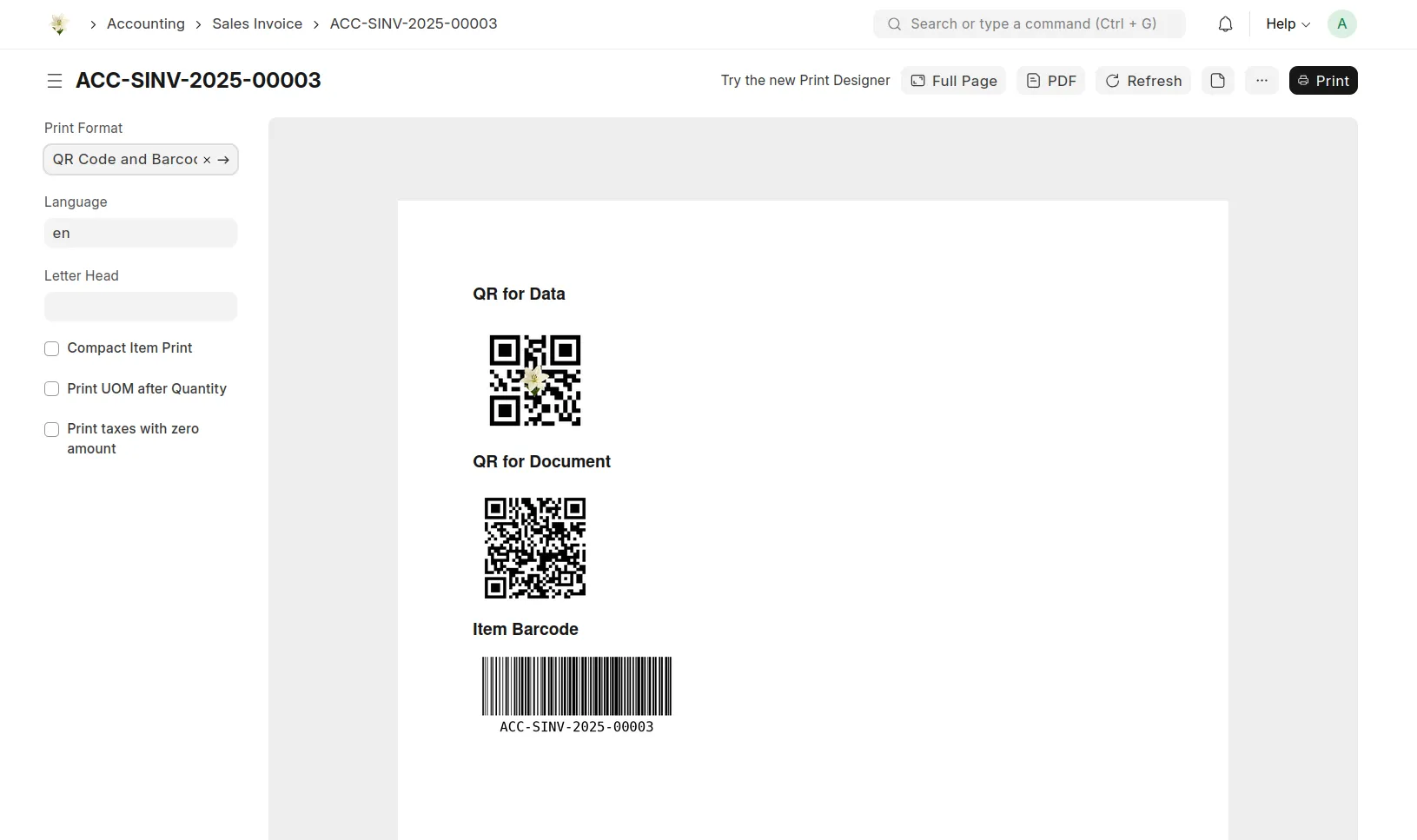

• Add QR codes and barcodes to print formats without long boilerplate.

• Generate per-document Verified QR records with unique IDs, content hashes, and signer metadata.

• Produce pixel-perfect PDFs from print formats using a modern Chromium engine — flex, grid, web fonts, all supported.

• Cryptographically sign PDFs (PAdES) so Adobe Reader recognises the signature panel.

• Provide a public, mobile-first verification page where anyone can scan a printed document and instantly confirm authenticity.

• Make document verification trivial via embedded scan-friendly QR links.

👥 Who Can Use This App?

Developers

• Add a QR code or barcode to any print format with one Jinja call.

• Inject QR codes into DocType field descriptions with a single JavaScript helper.

• Build verification flows on top of a stable, whitelisted API surface.

• Customise PDF output (multi-copy, header/footer modes, watermarks, signature blocks) without forking core code.

End Users

• Generate Verified QR records from any allowlisted DocType with a single button click.

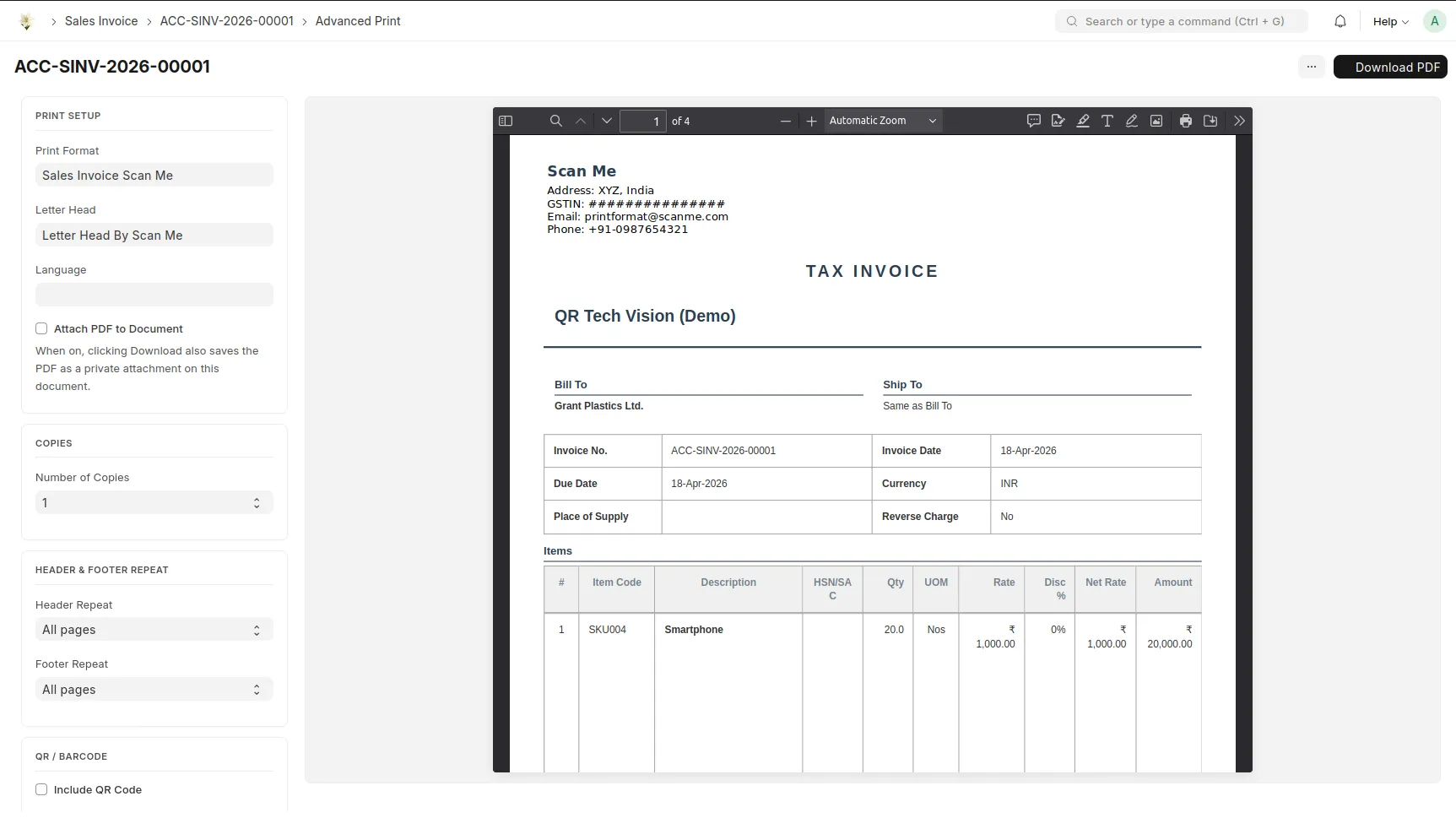

• Use the Advanced Print page to preview, configure, and download PDFs in real time.

• Scan a QR on any printed document and verify authenticity from a phone.

Administrators

• Configure allowed doctypes, signing rules, public-verify detail levels, and dialog features from a single tabbed form.

• Lock signature records permanently for audit compliance.

• Upgrade self-signed PAdES certificates to CA-issued ones with no code changes.

🧩 Key Features

🔐 Verified QR — Document Signing

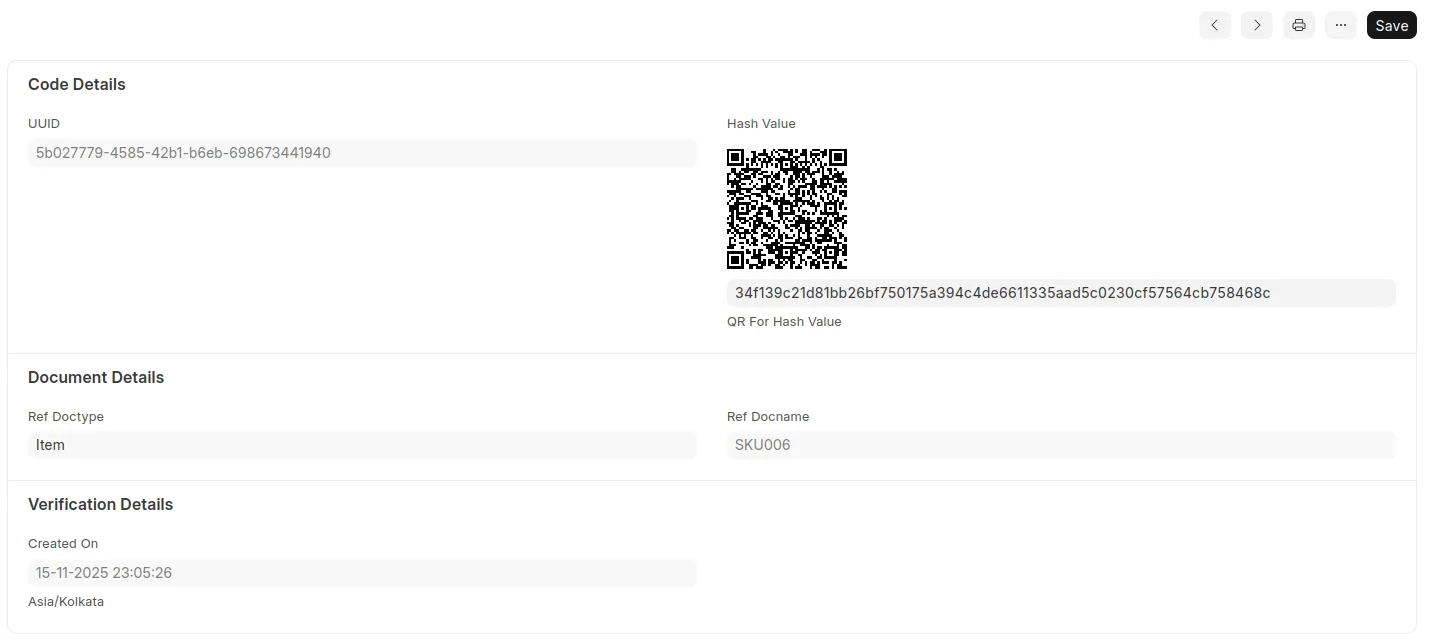

• One Verified QR record per signature — unique ID, timestamp, content hash, signer identity, signature image.

• Multi-signer support — multiple users can sign the same document, each with their own Verified QR.

• HMAC-signed QR payloads — tamper detection on the QR code itself.

• Optional SHA-256 content hash captured at sign time — edits to the source document automatically invalidate the signature.

• Permanent signature lock — signed records can be made immutable, no admin override.

• Stored-signature mode — server reads the user's saved signature instead of accepting client-supplied images.

🖨️ Chromium PDF Pipeline

A second, parallel print pipeline based on headless Chromium (via Playwright):

• Modern CSS — flex, grid, web fonts, calc(), container queries — all rendered the way browsers render them.

• Live PDF preview pane that re-renders on every option change (debounced).

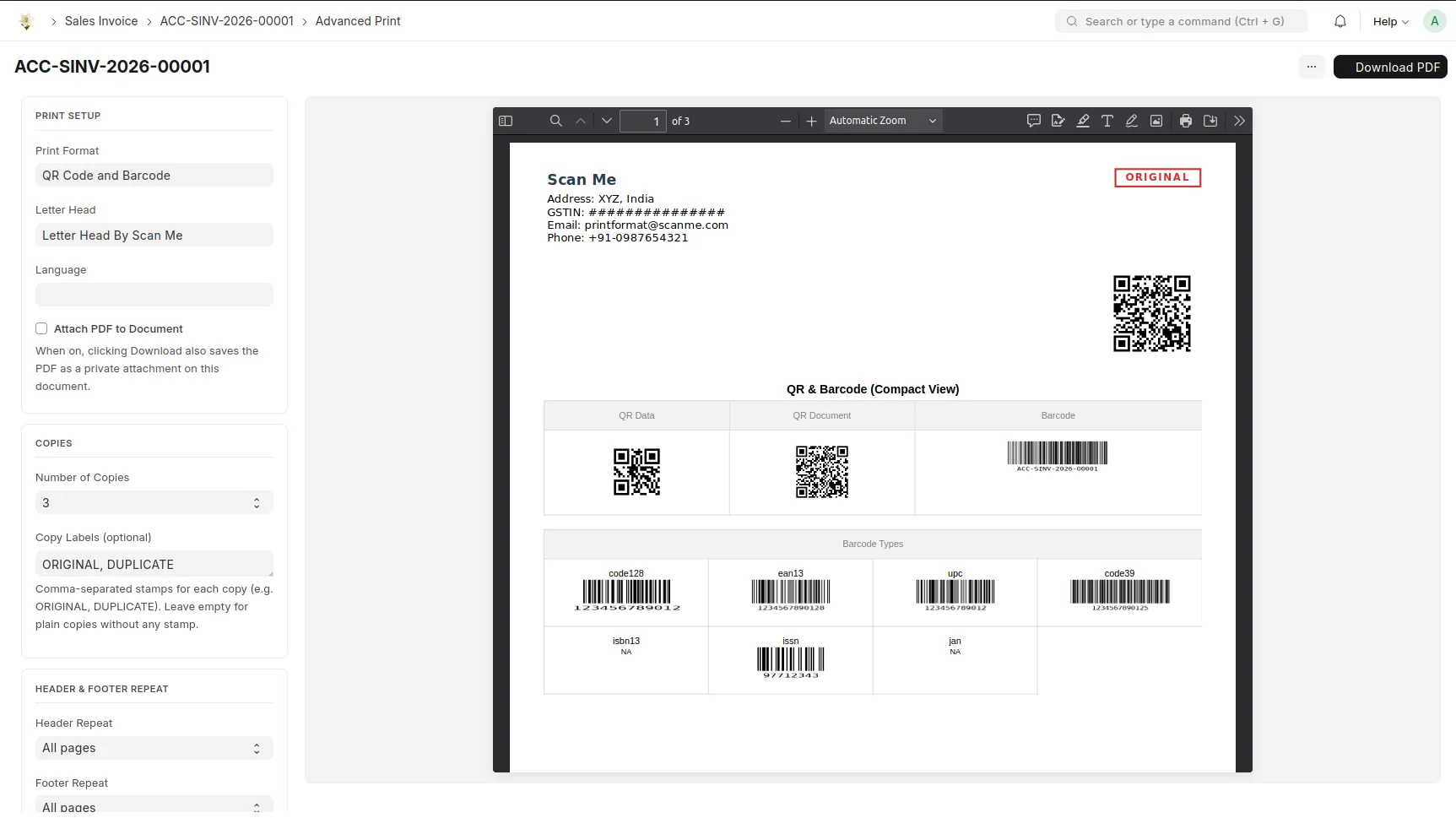

• Multi-copy printing (1–5) with custom labels — Original / Duplicate / Triplicate, or any comma-separated list.

• Header & footer repeat modes — All pages / First only / Last only / First + Last / None.

• QR insertion at any of the four corners with tamper-proof payload.

• Acrobat-style signature card with VERIFIED / INVALIDATED state colours.

• Watermark system — Document Status (auto DRAFT / CANCELLED / status) or Custom Text.

🧠 PAdES — Cryptographic PDF Signatures

• PyHanko-based PDF signing recognised by Adobe Acrobat's signature panel.

• Self-signed certificate auto-generated on first use.

• Drop-in upgrade path — replace the bundled PFX with a CA-issued certificate to get Adobe's green "Signed and all signatures are valid" badge.

• Signature Type selector — Visual Block / Cryptographic / Both.

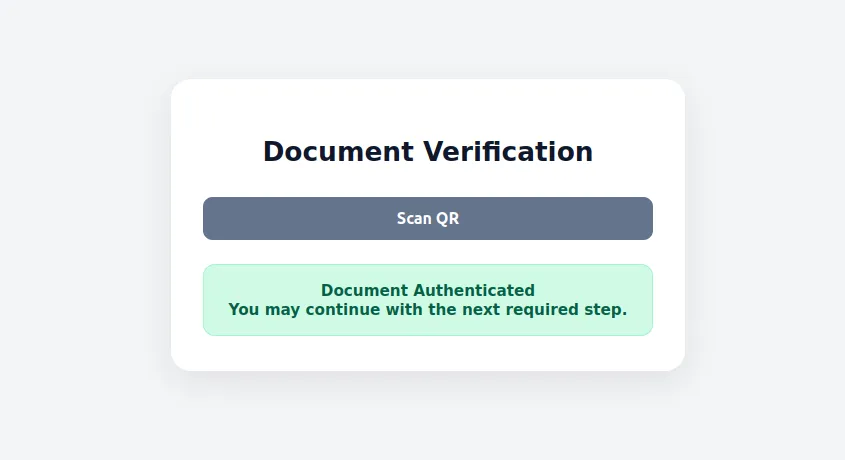

🌐 Public Verification Page

• Mobile-first, dark-mode-aware verify page at /verify_document/.

• Camera-based QR scanner with a manual paste fallback.

• Three distinct result states — Verified, Signature Invalidated (tampered), Not Recognised.

• Admin-configurable detail level — Minimal / Standard / Full — controls how much metadata guests see.

• Hard-capped guest exposure — even at the Full tier, unauthenticated users only see the signed-on date.

• Rate-limited per IP (30 / 60s) and per UUID (60 / hour) to block harvesting attacks.

• HTTPS-only secure cookies, CSRF-aware POST, hardened CSP and referrer policy.

⚙️ Tabbed Settings

A single Scan Me Settings form with four tabs:

• Allowed Documents — pick which DocTypes can be signed.

• Verification & Signing — multi-signer, content hash, lock, stored signature, PAdES, signature type, watermark mode.

• Public Verification — guest detail level.

• Print Dialog Features — toggle each section of the Advanced Print page.

🪄 Jinja Helpers

Auto-registered helpers for use in any print format, web page, or email template:

Example Usage

<img src="{{ qr(doc.name, clearity=10, include_logo=True) }}" width="120">

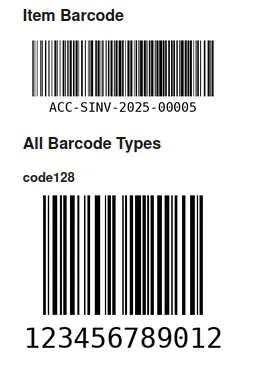

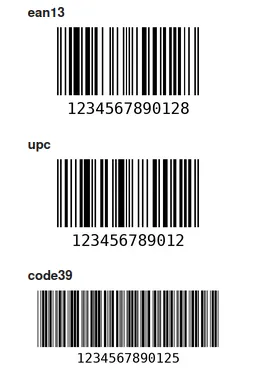

<img src="{{ barcode(doc.name, 'code128', module_height=25) }}" width="200">
<img src="{{ qr_link('Sales Invoice', doc.name) }}" width="120">
{{ verify_qr_img(doc.doctype, doc.name) }}

🪛 JavaScript Utility

add_qr_to_description(frm, fieldname, value) — auto-embed a QR code inside any field's description area.

frm.fields.forEach(f => {
    if ((f.df.description || "").toLowerCase().includes("qr")) {
        add_qr_to_description(frm, f.df.fieldname, frm.doc[f.df.fieldname]);
    }
});

📄 Bundled Print Formats

- Sales Invoice Scan Me — full-featured invoice with QR footer.
- SO — sample Sales Order format.
- Basic HTML Template by Scan Me — minimal starter; duplicate it to build your own format.
- Letter Head By Scan Me — reference letter head shipped as a fixture.

🔒 Security Highlights

- HMAC-signed QR payloads — tamper-evident verification.
- HMAC-wrapped content hashes — bind to doctype, name, and signer.
- Per-UUID and per-IP rate limiting on the public verify endpoint.
- Hardened CSP and referrer policy on the verify page.
- Permission-aware exposure — guests get the minimum, authenticated users with read permission get the configured tier.
- Allowlist-validated paths everywhere file I/O touches the disk.
- POST-only public endpoint — blocks cross-origin GET probing via <img>/<iframe>/<script>/<link>.

---
⚠️ Known Limitations

- Self-signed PAdES certificates show as "signer's identity is unknown" in Adobe until replaced with a CA-issued PFX.
- Multi-copy PDF capped at 5 copies.
- Signature image upload limited to PNG/JPEG, max 2 MB.
- Test suite is currently skeleton-only — full coverage planned for the next minor release.

---
📅 Roadmap

- Camera-based direct QR scanning inside the Desk.
- Tabular signature audit dashboard for compliance reviews.
- Signature stamps and watermark templates library.
- Web Form QR/Barcode widget.
- NFC-encoded smart-link support.
- Expanded test coverage and CI workflows.

---
🎯 Summary

Scan Me is a developer-focused, audit-grade utility app that makes QR, barcode, and signed-PDF workflows in Frappe extremely simple. Drop in a Jinja helper for the basics, or unlock the full Advanced
Print page, Verified QR records, and PAdES cryptographic signing for a hardened, end-to-end document trust workflow — all configurable from a single tabbed settings form, with zero boilerplate.
