ZKTeco Checkin Sync - Installation & Setup Guide

Overview

This Frappe/ERPNext app automatically synchronizes employee check-in/check-out transactions from ZKTeco biometric devices with ERPNext Employee Checkin records.

Features

• ✅ Real-time Sync: Configurable sync frequency (10 seconds to 1 hour)

• ✅ Smart Mapping: Automatically maps ZKTeco employee codes to ERPNext employees

• ✅ Duplicate Prevention: Prevents duplicate check-in records

• ✅ Test Connection: Preview transactions before enabling sync

• ✅ Dynamic Scheduler: Adjusts cron jobs based on sync frequency

• ✅ Comprehensive Logging: Detailed error tracking and sync statistics

Prerequisites

ZKTeco Device Requirements

• ZKBio Time software installed and running

• Device connected to network

• API access enabled

• Superuser credentials available

ERPNext Requirements

• ERPNext v13+ or Frappe v13+

• HR module enabled

• Employee records with matching employee codes

Configuration

1. Setup ZKTeco Device

Configure ZKBio Time

1. Open ZKBio Time software

2. Go to System Settings → Communication

3. Note down the Server IP and Port (usually port 80)

4. Ensure API access is enabled

5. Create or note superuser credentials

Test Device Connectivity

# Test if device is accessible using (Postman)
curl -X GET "http://[Server_IP]:[Server_Port]/iclock/api/transactions/"

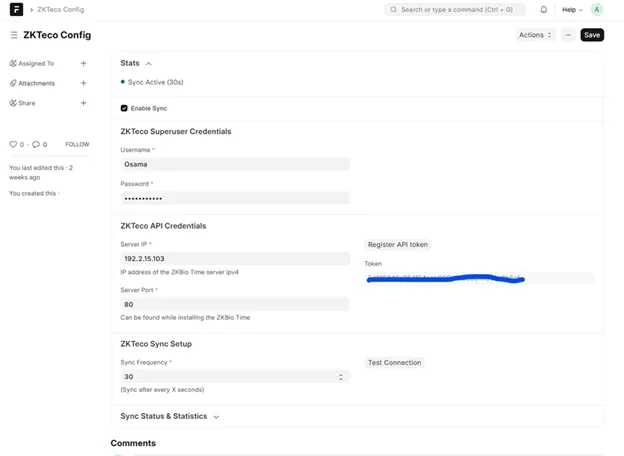

2. Access ZKTeco Config

1. Login to ERPNext

2. Go to: Setup → ZKTeco Checkin Sync → ZKTeco Config

3. Enable sync: Check "Enable Sync"

3. Configure Connection Settings

ZKTeco Superuser Credentials

• Username: Your ZKBio Time superuser username

• Password: Your ZKBio Time superuser password

ZKTeco API Credentials

• Server IP: IP address of the ZKBio Time server (e.g., 192.168.1.100)

• Server Port: Port number (usually 80)

4. Register API Token

1. Fill in Server IP and Port

2. Click "Register API token"

3. Token will be automatically generated and saved

5. Test Connection

1. Click "Test Connection" button

2. Review the transaction preview

3. Verify employee mappings

6. Configure Sync Settings

• Sync Frequency: Choose from 10 seconds to 1 hour

  • 10-30 seconds: For real-time monitoring

  • 5-15 minutes: Recommended for most setups

  • 30+ minutes: For less frequent updates

Employee Mapping

Automatic Mapping

The system automatically maps ZKTeco employees to ERPNext using:

1. Employee ID field in ERPNext matches emp_code from ZKTeco

2. User ID field in ERPNext matches emp_code from ZKTeco

3. Attendance Device ID field (if custom field exists)

Setup Employee Mapping

Method 1: Using Employee ID

ERPNext Employee → Employee ID = ZKTeco emp_code
Example: Employee ID = "001" matches ZKTeco emp_code = "001"

Method 2: Using User ID

ERPNext Employee → User ID = ZKTeco emp_code
Example: User ID = "E001" matches ZKTeco emp_code = "E001"

Method 3: Custom Field (Advanced)

1. Create custom field in Employee doctype:

   • Field Name: attendance_device_id

   • Field Type: Data

   • Label: Attendance Device ID

2. Set the field value to match ZKTeco emp_code

Testing & Verification

1. Test Connection

// The test will show:
✅ Connection status
📊 Number of transactions found today
👥 Employee mappings (Found/Not Found)
🔍 Sample transaction data

2. Manual Sync

1. Go to ZKTeco Config

2. Click Actions → Manual Sync

3. Check Employee Checkin list for new records

3. Monitor Sync Status

1. Click Actions → Sync Status

2. Review:

   • Last sync time

   • Recent check-ins count

   • Configuration status

Transaction Data Mapping

ZKTeco API Response Format

{
  "count": 8,
  "data": [
    {
      "id": 2,
      "emp_code": "001",
      "first_name": "John",
      "last_name": "Doe",
      "punch_time": "2025-08-15 17:54:17",
      "punch_state": "0",  // 0 = Check In, 1 = Check Out
      "punch_state_display": "Check In",
      "terminal_alias": "Main_Entrance"
    }
  ]
}

ERPNext Employee Checkin Mapping

ZKTeco Field           → ERPNext Field
emp_code              → employee (via mapping)
punch_time            → time
punch_state ("0"/"1") → log_type ("IN"/"OUT")
terminal_alias        → device_id
id                    → device_id (appended for uniqueness)

Troubleshooting

Common Issues

1. Connection Failed

❌ Symptoms: Test connection fails
🔧 Solutions:
- Verify Server IP and Port
- Check network connectivity
- Ensure ZKBio Time is running
- Verify firewall settings

2. Token Registration Failed

❌ Symptoms: Cannot register API token
🔧 Solutions:
- Check username/password
- Ensure superuser privileges
- Verify API endpoint accessibility

3. Employees Not Found

❌ Symptoms: Transactions sync but employees not mapped
🔧 Solutions:
- Check Employee ID/User ID mapping
- Verify emp_code format consistency
- Review Employee master data

4. Duplicate Check-ins

❌ Symptoms: Multiple records for same punch
🔧 Solutions:
- System automatically prevents duplicates
- Check device_id uniqueness
- Review time tolerance settings

Error Logs

Monitor error logs in: - Error Log doctype in ERPNext - System logs with title "ZKTeco"

Debug Mode

# Enable detailed logging
frappe.log_error("Debug message", "ZKTeco Debug")

Advanced Configuration

Custom Scheduler Frequency

# In hooks.py, modify get_scheduler_events()
# Add custom frequency mappings

Custom Employee Mapping

# Override find_employee_by_code() function
# Add custom mapping logic

Field Customization

# Modify create_employee_checkin() function
# Map additional ZKTeco fields to custom fields

Performance Optimization

Recommended Settings

• Small Office (< 50 employees): 30-60 seconds

• Medium Office (50-200 employees): 2-5 minutes

• Large Office (200+ employees): 5-15 minutes

Database Optimization

-- Add indexes for better performance
ALTER TABLE `tabEmployee Checkin`
ADD INDEX `idx_employee_time` (`employee`, `time`);

ALTER TABLE `tabEmployee Checkin`
ADD INDEX `idx_device_time` (`device_id`, `time`);

Security Considerations

API Token Security

• Tokens are stored encrypted in ERPNext

• Regular token rotation recommended

• Limit API access to specific IPs if possible

Network Security

• Use VPN for remote ZKTeco device access

• Implement firewall rules

• Regular security updates

Maintenance

Regular Tasks

1. Monitor sync status - Weekly

2. Review error logs - Daily

3. Verify employee mappings - When adding new employees

4. Test connection - After any network changes

Backup Considerations

• Employee Checkin data is included in ERPNext backups

• ZKTeco Config settings are preserved

• API tokens need re-registration after restore

Support & Troubleshooting

Log Files to Check

1. Error Log doctype in ERPNext

2. ZKTeco Sync error logs

3. ZKTeco Scheduler logs

Performance Monitoring

# Check sync statistics
frappe.call('zkteco_checkins_sync.zkteco_checkin_sync.doctype.zkteco_config.zkteco_config.get_sync_status')

Contact Support

For technical support or feature requests: - Email: osama.ahmed@deliverydevs.com - GitHub: [Repository URL ]

Changelog

Version 0.0.1

• Initial release

• Basic sync functionality

• Dynamic scheduler

• Employee mapping

• Error handling and logging
