EDocument

Create and import PEPPOL-compliant e-documents with ERPNext.

This app provides a flexible framework for generating and parsing electronic documents, with full support for PEPPOL BIS Billing 3.0 using UBL 2.1 XML format.

Features

• PEPPOL BIS Billing 3.0 Support: Full implementation of PEPPOL BIS Billing 3.0 specification

• UBL 2.1 XML Generation: Generate compliant UBL 2.1 XML for invoices and credit notes

• Multiple Document Types: Support for Invoice and CreditNote

• XML Validation: XSD schema validation and Schematron business rule validation

• Code List Management: Automatic code list handling for PEPPOL standards

• Profile-Based Architecture: Extensible profile system for different e-document standards

• Import/Export: Import incoming PEPPOL invoices and export outgoing invoices

Installation

Please use a branch that matches the major version of ERPNext you are using. For example, version-15 or version-16. If you are a developer contributing new features, you'll want to use the develop branch instead.

Dependencies

This app requires the following Python packages (automatically installed):

• saxonche (~=12.5.0): XSLT 3.0 processor for Schematron validation

• lxml (>=4.9.3,<6.0.0): XML parsing and XSD validation

These dependencies are specified in pyproject.toml and will be installed automatically when you install the app.

Setup

Code Lists

E-documents rely on common codes that describe the content of the document. E.g. "C62" is used for the UOM "One" and "ZZZ" is used for a mutually agreed mode of payment.

Common codes are part of a code list. You'll need to import the code lists and map the codes you need to the corresponding ERPNext entities. Please use the "Import Genericode" button in Code List and paste the URL linked below.

For example, let's say your standard Payment Terms Template is "Bank Transfer, 30 days". You'll need to find the suitable Common Code for bank transfers within the Code List "UNTDID.4461". In this case, the code is "58". Then you add a row to the Applies To table, select "Payment Terms Template" as the Link Document Type and "Bank Transfer, 30 days" as the Link Name. If you now create an Invoice with this Payment Terms Template, the e-document will contain the code "58" for the payment means.

The retrieval of codes goes from the most specific to the most general. E.g. for determining the VAT type of a line item, we first look for a code using the specific item's Item Tax Template and Income Account, then fall back to the code for the invoice's Tax Category or Sales Taxes and Charges Template.

PEPPOL Code Lists

For PEPPOL profiles, additional code lists are required. These can be imported using the "Import Genericode" button in Code List:

These code lists are automatically set up when you install the app. You can verify and update mappings in the Code List doctype.

The PEPPOL code lists are sourced from the PEPPOL BIS Billing 3.0 repository and are included in the app's edocument/profiles/peppol/peppol-bis-invoice-3/structure/codelist/ folder.

The UBL 2.1 XSD schemas are sourced from the OASIS UBL 2.1 specification and are included in the app's edocument/profiles/peppol/UBL-2.1/xsd/ folder.

Electronic Address

If you send your invoice via PEPPOL, you might need to specify your and your customer's electronic addresses. This is done by setting the Electronic Address Scheme and Electronic Address fields in the Company, Customer and Supplier master data.

Please make sure to import the Electronic Address Scheme code list first.

If not specified, email addresses are used as electronic addresses for outgoing invoices. For the Customer, we use the Contact Email or Buyer Address > Email ID. For the Company, we use the Seller Contact > Email ID or Company > Email.

Bank Details

If you want your e-document to contain bank details, you need to set up a Mode of Payment of type "Bank", link the company's corresponding Account and create a Bank Account for the same account with IBAN and BIC (SWIFT number).

Then, you can map a Common Code from Code List "UNTDID.4461", e.g. "Credit Transfer" (30) or "SEPA Credit Transfer" (58), to the Mode of Payment.

Please note that the e-document standard only supports one payment means per invoice, so you should not specify multiple Modes of Payment in the same invoice.

How to Guide

Master Data Configuration

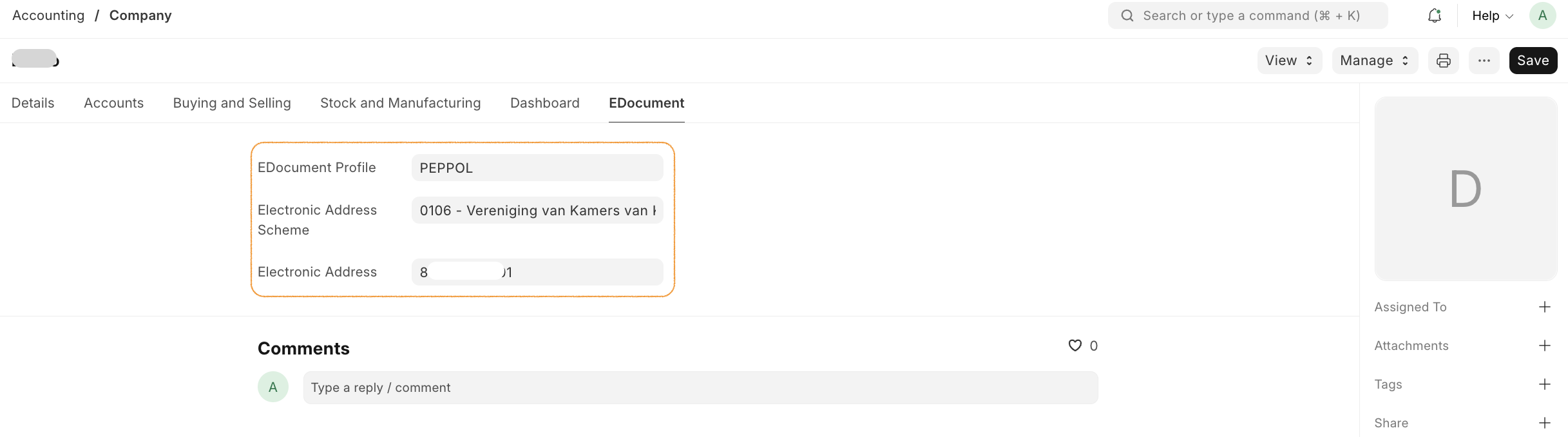

Company Setup

Configure EDocument settings in the Company master data: - EDocument Profile: Default profile to use for this company - Electronic Address Scheme: Scheme for the company's electronic address (e.g., GLN, EAS) - Electronic Address: The company's electronic address identifier

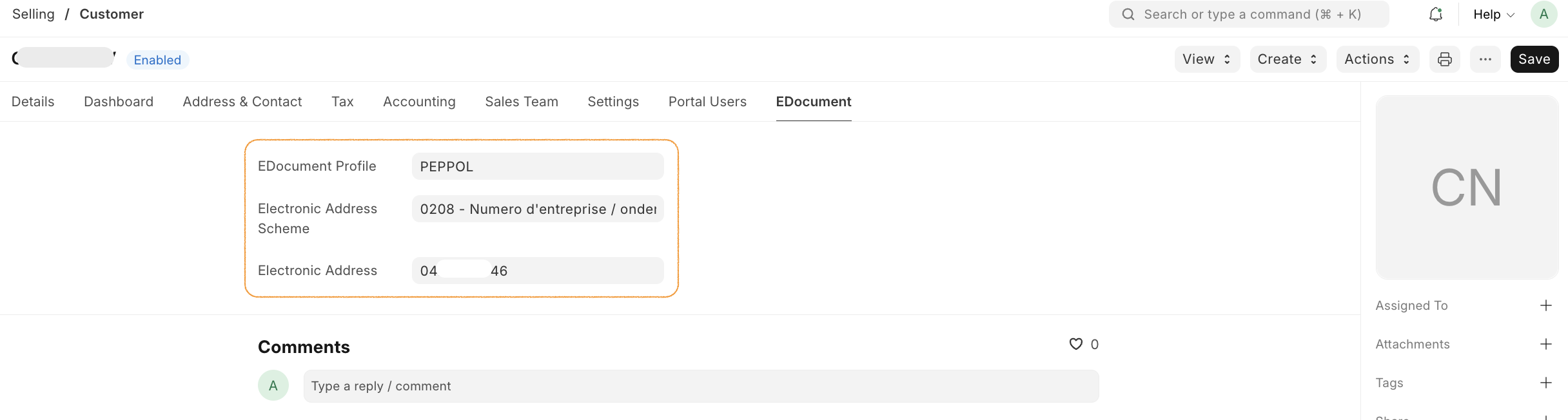

Customer Setup

Configure EDocument settings in the Customer master data: - EDocument Profile: Default profile to use for this customer - Electronic Address Scheme: Scheme for the customer's electronic address - Electronic Address: The customer's electronic address identifier

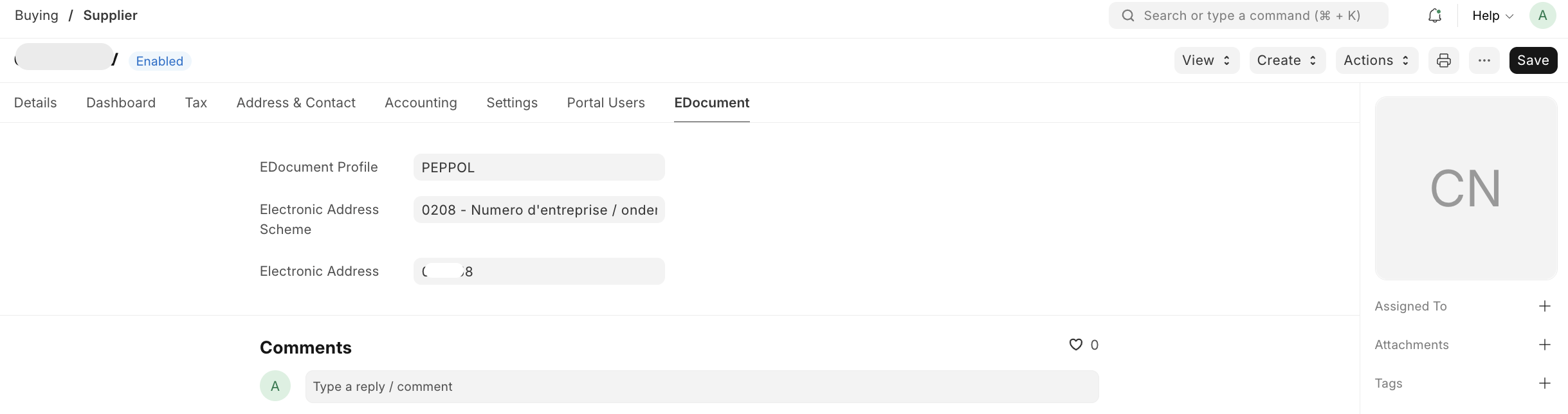

Supplier Setup

Configure EDocument settings in the Supplier master data: - EDocument Profile: Default profile to use for this supplier - Electronic Address Scheme: Scheme for the supplier's electronic address - Electronic Address: The supplier's electronic address identifier

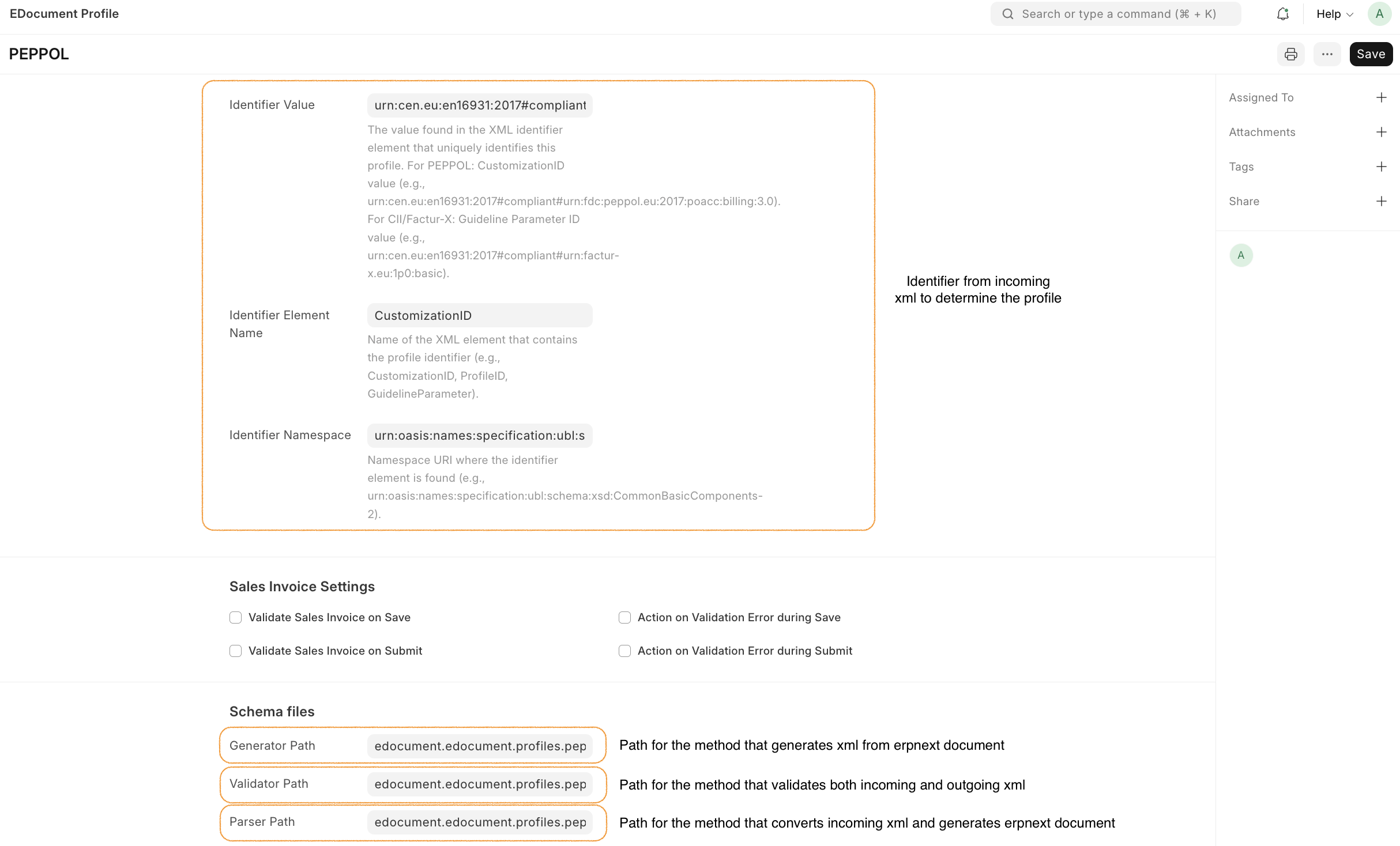

EDocument Profile

The EDocument Profile defines the configuration for a specific e-document standard (e.g., PEPPOL). It includes: - Identifier Values: Used to detect the profile from XML (namespace, element name, value) - Generator Path: Function that generates XML from ERPNext documents - Parser Path: Function that parses XML into ERPNext documents - Validator Path: Function that validates XML against schemas and business rules - Sales Invoice Settings: Options for automatic validation on save/submit

The PEPPOL profile is automatically created when you install the app.

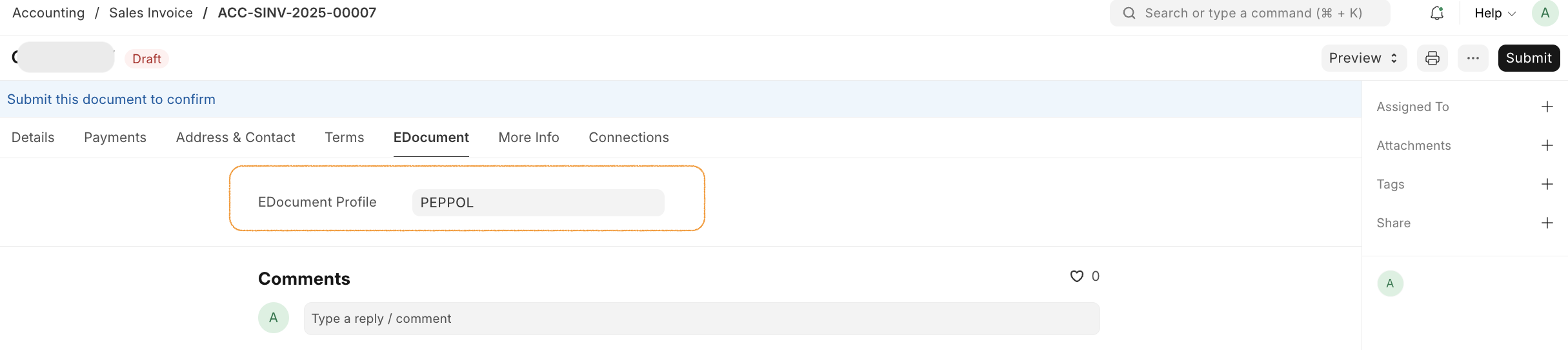

Sales Invoice

In the Sales Invoice, you can: - Select an EDocument Profile (defaults from Customer if set) - When the invoice is submitted, an EDocument record is automatically created (if profile is set) - The EDocument can then be used to generate and validate the PEPPOL XML

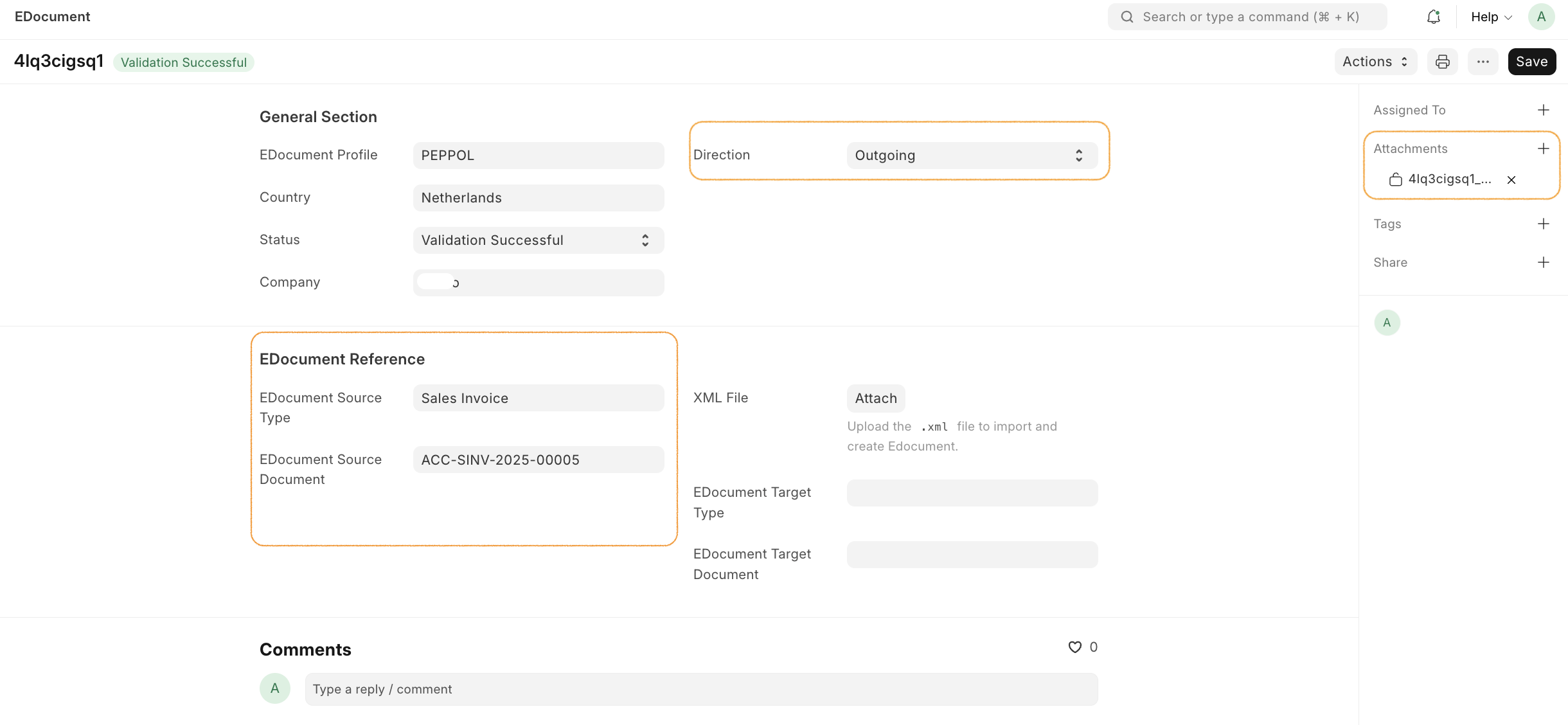

Outgoing EDocument

For outgoing e-documents (generated from Sales Invoices): 1. Set the Source Type (e.g., "Sales Invoice") 2. Set the Source Document (the Sales Invoice name) 3. Select the EDocument Profile (e.g., "PEPPOL") 4. Click Generate XML to create the PEPPOL XML 5. The XML is automatically validated 6. The XML file is attached to the EDocument record

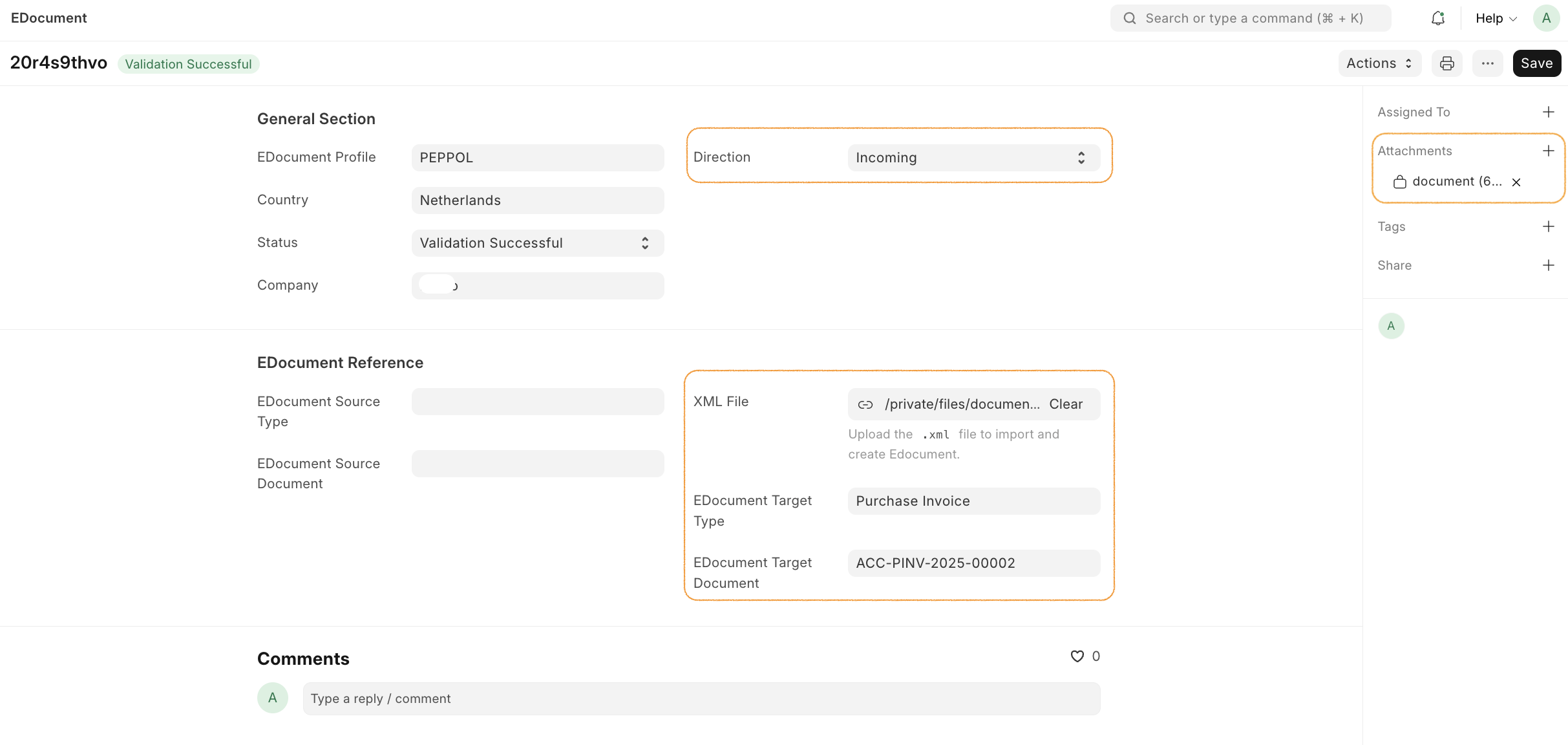

Incoming EDocument

For incoming e-documents (imported XML files): 1. Upload the XML file 2. The app automatically detects the document type and profile 3. The XML is validated against XSD and Schematron rules 4. Click Create Document to parse the XML and create a Purchase Invoice

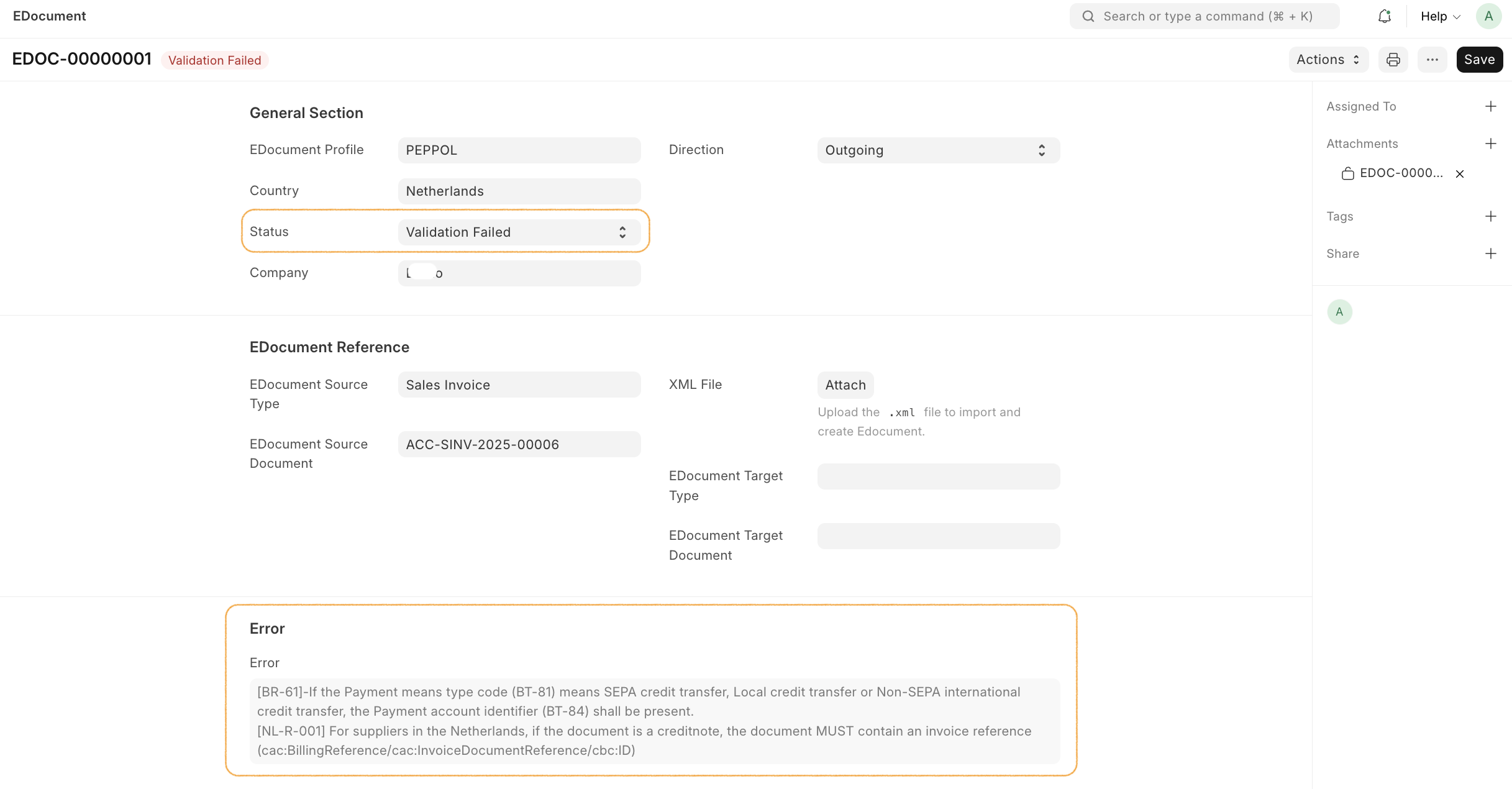

Validation Errors

When validation fails, the EDocument record shows: - Status: "Validation Failed" - Error: Detailed validation error messages - Warnings: Any validation warnings (non-blocking)

Common validation errors include: - XSD schema violations (element order, missing required fields) - Schematron business rule violations (BR-CO-15, BR-CO-17, etc.) - Missing required codes or invalid code values

Usage

EDocument Profile

Before using the app, you need to create an EDocument Profile that defines which profile to use (e.g., PEPPOL) and the generator/parser paths.

1. Go to EDocument Profile doctype

2. Create a new profile (e.g., "PEPPOL")

3. Set the profile identifier values:

   • Identifier Namespace: urn:oasis:names:specification:ubl:schema:xsd:Invoice-2

   • Identifier Element Name: CustomizationID

   • Identifier Value: urn:cen.eu:en16931:2017#compliant#urn:fdc:peppol.eu:2017:poacc:billing:3.0

4. Set the generator and parser paths:

   • Generator Path: edocument.edocument.profiles.peppol.generator.create_peppol_xml

   • Parser Path: edocument.edocument.profiles.peppol.parser.parse_peppol_xml

   • Validator Path: edocument.edocument.profiles.peppol.validator.validate_peppol_xml

Sales Invoice

To create an outgoing e-document, you need to create an EDocument record:

1. Go to EDocument doctype

2. Create a new document

3. Set the Source Type (e.g., "Sales Invoice")

4. Set the Source Document (the Sales Invoice name)

5. Select the EDocument Profile (e.g., "PEPPOL")

6. Click Generate XML - this will create the PEPPOL XML and attach it to the document

7. The XML is automatically validated against XSD and Schematron rules

8. Click Validate XML - this will validate the PEPPOL XML.

The following fields of the Sales Invoice are currently considered for the e-document:

• Invoice type (credit note, corrected invoice, commercial invoice)

• Invoice number

• Invoice date

• Due date (only for invoices, not credit notes)

• Currency

• Company information (name, address, tax ID, electronic address)

• Customer information (name, address, tax ID, electronic address)

• Items (name, description, quantity, rate, net amount, tax rate)

• Taxes (rate, amount, taxable amount)

• Payment means (bank account with IBAN and BIC)

• Payment terms

• Totals (line extension amount, tax exclusive amount, tax inclusive amount, payable amount)

• Document-level discounts and allowances

Credit Notes

Credit notes are automatically detected when a Sales Invoice has is_return = 1. The app will:

• Use CreditNote as the root XML element (instead of Invoice)

• Use CreditNoteTypeCode instead of InvoiceTypeCode

• Use CreditNoteLine instead of InvoiceLine

• Exclude DueDate (credit notes don't have due dates)

• Include BillingReference to reference the original invoice

• Use the CreditNote XSD schema for validation

Purchase Invoice (Import)

To import an incoming e-document:

1. Go to EDocument doctype

2. Create a new document

3. Upload the XML file

4. The app will automatically:

   • Detect the document type (Invoice, CreditNote, etc.)

   • Detect the profile (PEPPOL)

   • Validate the XML against XSD and Schematron rules

   • Parse the XML and create a Purchase Invoice

The following fields are imported from the e-document:

• Invoice ID

• Issue Date

• Currency

• Seller (Supplier) information

• Buyer (Company) information

• Items (product name, description, quantity, rate, tax rate)

• Taxes (basis amount, rate, calculated amount)

• Payment terms

• Payment means (IBAN, BIC)

• Monetary totals

Validation

The app performs comprehensive validation of generated and imported XML:

1. XML Syntax Validation: Ensures the XML is well-formed

2. XSD Validation: Validates the XML against the UBL 2.1 XSD schema (Invoice or CreditNote)

3. Schematron Validation: Validates business rules using PEPPOL Schematron files

Validation results are displayed in the EDocument record: - Status: Valid/Invalid - Error: Any validation errors - Warnings: Any validation warnings

External Validation

For PEPPOL invoices (UBL 2.1), you can use the PEPPOL Validation Service or your PEPPOL service provider's validation tools.

Architecture

The app follows a modular, profile-based architecture:

Core Components

• generator.py: Converts ERPNext invoice data to UBL 2.1 XML

• parser.py: Parses UBL 2.1 XML and creates ERPNext documents

• validator.py: XSD and Schematron validation

• profiles/: Profile-specific implementations (PEPPOL, etc.)

Profile System

The app uses a profile-based system that allows different e-document standards to be implemented:

• PEPPOL Profile: Full PEPPOL BIS Billing 3.0 implementation

• Extensible: Easy to add new profiles (e.g., country-specific CIUS)

Each profile defines: - Generator function (creates XML from ERPNext data) - Parser function (creates ERPNext data from XML) - Validator function (validates XML) - Profile identifier (for automatic detection)
